Dice

Conditions

I want to join the game with dice. During the clock cycle, between 1 to 6 numbers will be shown randomly. When BTNC is pressed, it should be clear.





Design Sources

`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2023/10/04 13:07:07
// Design Name:
// Module Name: Dice
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////


module Dice(
    input CLK,
    input BTNL, BTNR, BTNC,
    output reg [3:0] Random_L, Random_R
    );
    reg [3:0] random;

    always @(posedge CLK) begin
    if(BTNC) begin
    random <=4'b0000;
    Random_L <=random;
    Random_R <=random;
    end
    else if(BTNL) begin
    random <= $urandom_range(1, 6);
    Random_L <=random;
    end
    else if(BTNR) begin
    random <= $urandom_range(1, 6);
    Random_R <=random;
    end
    end



endmodule

Use the '$unrandom_range(X, Y)' function. X would be the minimum and Y would be the maximum.





Simulation Sources

`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date: 2023/10/05 21:19:29
// Design Name:
// Module Name: Dice_tb
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////


module Dice_tb;
    reg CLK;
    reg BTNL, BTNR, BTNC;
    wire [3:0] Random_L, Random_R;

    Dice UUT(.CLK(CLK), .BTNL(BTNL), .BTNR(BTNR), .BTNC(BTNC), .Random_L(Random_L), .Random_R(Random_R));

    always
    begin
    #1 CLK <= ~CLK;
    end

    initial
    begin
    CLK=0;
    #5 BTNL <= 1;
    #5 BTNL <= 0;
    #5 BTNR <= 1;
    #5 BTNR <= 0;
    #5 BTNC <= 1;
    #5 BTNC <= 0;
    #5;
    $finish;
    end

endmodule

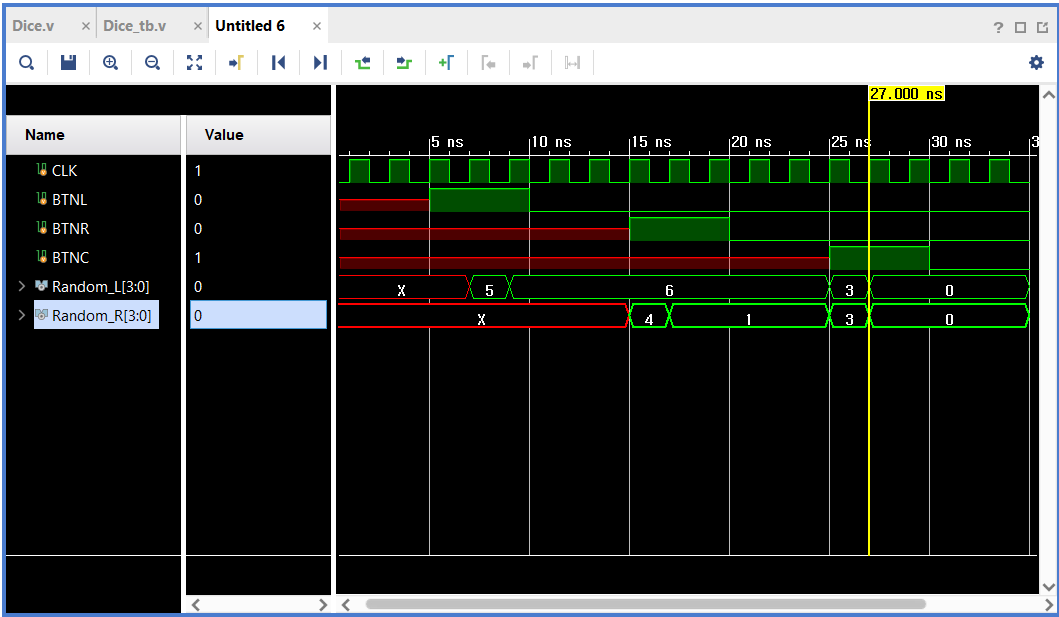

Testbench Waveform

If you want to control this code with the board, you have to add a constraint file too. However this time I just wanted to try the function which shows me random numbers, so I dropped the constraint file.
